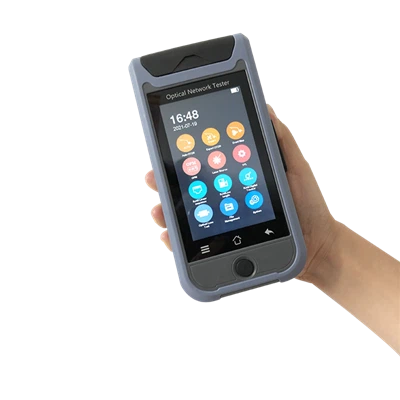

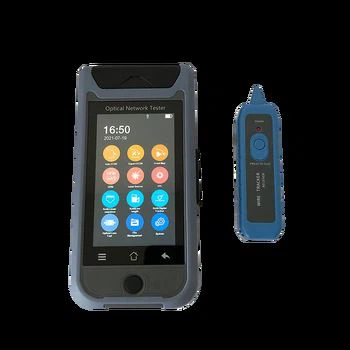

SENTER ST3200F OTDR ak Optical Power Meter VFL Limyè Sous

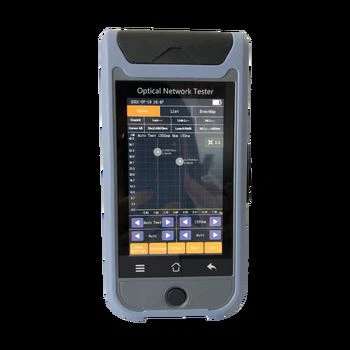

ST3200F OTDR adopte ekran tactile kapasitif 4 .3-pous.
Li entegre 12 fonksyon, tankou oto OTDR, ekspè OTDR, kat evènman, OPM, RJ45 kab tracker, ak"nivo òdinatè" jesyon dosye pou satisfè kondisyon tès divès kalite nan diferan okazyon.
OTDR gen yon seri dvnamic maksimòm 26dB, 8G memwa, epi li ka estoke plis pase 200, 000 koub; li ekipe ak 4000mah-wo dansite polymère ityòm batri, entelijan jesyon ekonomize pouvwa, mezire tan ki gen plis pase 8 èdtan.
OTDR | |||||||
Modèl | ST3200F-A | ST3200F-B | ST3200F-C | ST3200F-D | ST3200F-E | ||
Kalite | G.652 SM | ||||||
Longèdonn | 1310/1550±20nm | 1310/1550±20nm | 1625nm | 1650nm | 850/1300nm (SM) | ||
Ranje dinamik | 26dB/24dB | 32/30dB | 22dB | 22dB | 22/24dB | ||
Zòn avèg evènman | 2.5m | ||||||
Zòn avèg ATT | 8m | ||||||
Tès Range | 500m/1km/2km/4km/8km/16km/32km/64km/100km | ||||||
Lajè batman kè | 3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1us/2nou/3nou/5nou/8nou/10nou/20nou | ||||||
Ranje Presizyon | ± (1m{{0}}Echantiyon entèval+0.005%×Distans tès) | ||||||
Linearite | ≤0.05dB/dB | ||||||
Pwen echantiyon | 16k~128k | ||||||
Egzanp Rezolisyon | 0.05m~8m | ||||||
Rezolisyon pèt | 0.001dB | ||||||
Papòt pèt | 0.20dB | ||||||
Rezolisyon ranje | 0.001m | ||||||
Endèks refraktif | 1.00000-2.00000 | ||||||
Refleksyon Presizyon | ± 3dB | ||||||
Fòma dosye | SOR fòma dosye estanda | ||||||
Analiz pèt | 4-pwen metòd / 5-pwen metòd | ||||||
Nivo Sekirite Lazè | Klas II | ||||||
Konektè | FC/UPC (Interchangeable SC、ST) Oswa SC/APC | ||||||
Rafrechisman pousantaj | 3Hz (Twi) | ||||||
Multitech | Sipò | ||||||
OPM | LS | Longè kab RJ45 | |||||
Wave Range | 800nm~1700nm | Longèdonn | Menmak OTDR | Distans tès | ≥300m | ||
Tès Range: -70~+10dBm/ -50 ~ +26dBm | Kalite lazè | FP - LD | Lòt moun | ||||
Pouvwa | ≥-5dBm | Ekspozisyon：4.3pous 800×480 IPS TFT-LCD Multi manyen kapasitif manyen ekran | |||||
Rezolisyon | 0.01dB | Estabilite cw, ± 0.5dB/15min(Apre15min nan prechofaj) | Ekipman pou pouvwa:AC/DCadaptèInput:100V ~ 240V, 50/60Hz, 0.6A Sòti:5v 2A Batri ityòm:3.7V, 4000mAh | ||||
Ensètitid | ±5% | FC/UPC (Interchangeable SC,ST) | |||||
Idantifikasyon frekans | CW/270/330/1k/2kH(Sèvi ak LS enteryè) | Mode： CW/270Hz/330Hz/1kHz/2kHz | |||||
Konektè | Inivèsèl FC/SC/ST | Vag Rekonesans | Sipò | Batri k ap travay | Tès kontinyèl> 12h | ||
Vag Rekonesans | Sipò | Tès pèt optik | Depo Done | 8GB,≥20 mil koub | |||
VFL | Longèdonn | Menmak LS | Done Entèfas | Kalite USBC | |||
Longèdonn | 650nm±20nm | Tès IL | Sipò | Tanperati travay | -10°C~+50°C | ||
Sortie pouvwa | ≥10mW | RJ45tracker kab | Tanperati Depo | -40°C~+70°C | |||
Mode | CW/1Hz/2Hz | Mode | Suivi dijital | Imidite relatif | 0〜95% Ki pa kondanse | ||
Konektè FC/UPC(Interchangeable SC ST) | Distans | ≥300m | Wuit | ≤0.5kg | |||
Nivo Sekirite | Klas III | SipòOnline/Liy Pè Tracking | Gwosè | 173mm×109mm×45mm | |||
SHANDONG SENTER te etabli an 1996, ki se yon founisè solisyon FTTH dirijan nan domèn telekominikasyon.
Biznis nou an te pwolonje nan R& D, fabrikasyon, maketing nan mache lòt bò dlo. Ki gen ladan Ewòp, Amerik di Sid, Amerik di Nò, Azi, Lafrik.Byenveni chwazi noupwodwi pou opsyon biznis ou epi kite&kreye plis opòtinite koperasyon ansanm.
Baj popilè: OTDR, Optical Time Domain Reflectometer, pri tèsteur otdr, SM/MM OTDR, mèt pouvwa optik, sous lazè, vfl, 1310/1550nm, tèsteur RJ45, manifakti, pri faktori.
