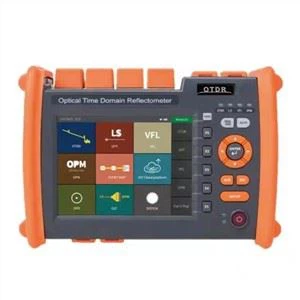

ST3200H 7 pous OTDR

Kalite

ENTELIJAN

MM

SM / MM

Longèdonn

1310/1550nm

1310nm / 1490nm / 1550nm

1310nm / 1550nm / 1625nm

1310nm / 1550nm / 1650nm

1310nm / 1550nm / 1625nm / 1650nm

1310nm / 1490nm

/ 1550nm / 1625nm

850nm / 1300nm

850nm / 1300nm / 1310nm / 1550nm

Ranje dinamik

32/30

35/33

38/36

42/40

45/43

32/30/30

37/35/35

32/30/30

37/35/35

32/30/30

37/35/35

37/35/35

37/35/35/35

26/28

26/28/35/33

26/28/37/35

Zòn avèg evènman

0.8

0.5m

0.8m

0.5m

0.8m

0.5m

0.8m

0.5m

0.5m

0.5m

1m

ATT zòn avèg

4

3.5m

4m

3.5m

4m

3.5m

4m

3.5m

3.5m

3.5m

6m

Tès Range

100m / 500m / 1.25km / 2.5km / 5km / 10km / 20km / 40km / 80km / 125km / 260km / 420km

Lajè batman kè

3ns/5ns/10ns/20ns/30ns/50ns/80ns/100ns/200ns/300ns/500ns/800ns/lus/2us/3us/5us/8us/10us/20us/20us

Ranje presizyon

± (0.75m plis Egzanp entèval plis Q0025 pousan distans XTest)

Pèt presizyon

± 0.03d B/d B

Pwen echantiyon

Pi gran pase oswa egal a 256k

Egzanp Rezolisyon

0.015m~16m

Refleksyon Presizyon

± 2dB

Rezolisyon pèt

0.01dB

Papòt pèt

0.01dB

Fòma dosye

SOR fòma dosye estanda

Analiz pèt

4-metòd pwen /5-metòd pwen

Nivo Sekirite Lazè

Klas II

Rafrechisman pousantaj

4Hz (tip.)

Depo Done

Depo entèn:2GB, 200,000koub;Depo ekstèn:64GB

Konektè

FC/UPC (Interchangeable SC ST)

Done Entèfas

USB-A. Kalite-C pò, RJ45 LAN 10/100Mbit/s

OPM

Ranje longèdonn

800nm ​​~ 1700nm

Konektè

Inivèsèl FC/SC/ST

Dimansyon tès la

-50dBm~ plis 26dBm/-70dBm~ plis 6dBm

Ensètitid

± 5 pousan

Kalibrasyon longèdonn

850nm / 980nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm / 1650nm

L S

Kalite lazè

FP-LD

Longèdonn

Ki konsistan avèk longèdonn pwodiksyon OTDR

Sortie pouvwa

>-5dBm(SM fib)

Mòd

CW/270Hz/lkHz/2kHz

Estabilite

CW, ±0.5dB/15min (Tès apre 15 minit nan prechofaj)

Konektè

FC/UPC (Interchangeable SC,ST) VFL

Longèdonn

650nm plis 20nm

pwodiksyon pouvwa

Pi gran pase oswa egal a 10mW

Mòd

CW/lHz/2Hz

Konektè

FC/UPC (Interchangeable SC,ST)

Endèks tès la pèt optik refere a sous limyè ki anwo a ak endèks mèt pouvwa optik.

Lòt moun

Ekspozisyon

7 pous koulè LCD plis touche ekran rezolisyon:800x480

Ekipman pou pouvwa

Kalite-C adaptè:Antre: 100V〜240V, 50/60Hz, Sòti:5V/3A,9V/2A,12V/1.5A batri ityòm: 3.7V,10400mAh

tanperati k ap travay

-10 degre ~ plis 50 degre

Tanperati depo

-40 degre〜plis 70 degre

imidite relatif

0〜95 pousan, ki pa kondanse

Pwa

W 1.2kg

Gwosè

215mm x 160mm x50mm

Fonksyon lame:OTDR/VFL/LS/OPM/Kat Evènman/Deteksyon Fen/Tès Pèt Optik/Tès Ethernet/Tès Remote/Jesyon Fichye

Modèl

P1

P2

P3

P4

P5

P6

P7

Longèdonn

1310nm±20nm 1550nm±20nm

1625nm±20nm (Filtre)

1650nm ± 5nm (Filtre)

1310nm/1550nm ± 20nm 1625nm ± 15nm (Filtre)

1310/15 50nm±20nm 1650 ±5nm (Filtre)

Filtre

/

High pass>1595nm lsolation>40dB (1270nm'1585nm)

Bandpassl650nm± 7nm Isolation >40dB (1650nm ± 10nm)

High pass>1595nm Isolation >40dB (1270nm { {2}}nm)

Bandpassl650nm ±7nm lsdation>40dB (1650nm ± 10nm)

Fibertype

G.652

Maksimòm Range dinamik

37/35dB

38DB

38DB

38/36/3 6dB

40/38/38dB

42/40/40DB

38/36/36DB

Zòn avèg evènman

0.5m

Zòn avèg ATT

3.5m

Zòn avèg PON

30m

Tès Range

10 0m/500m/l .25 km/2.5 km/5km/10 km/20km/4 0km/80km/125km/260km/420km

Lajè batman kè

3ns/5ns/10ns/20ns/30ns/50ns/80ns/100ns/200ns/300ns/500ns/800ns/lus/2us/3us/5us/8us/10us/20us/20us

Ranging presizyon

± ({{0}}.75m plis Entèval echantiyon plis 0.0025 pousan distans xTest)

Pèt presizyon

0.03d B / dB

Pwen echantiyon

>256k

Egzanp Rezolisyon

0.015m~16m

Refleksyon Presizyon

± 2dB

Rezolisyon pèt

±0.001dB

Papòt pèt

{{0}}.0ldB
